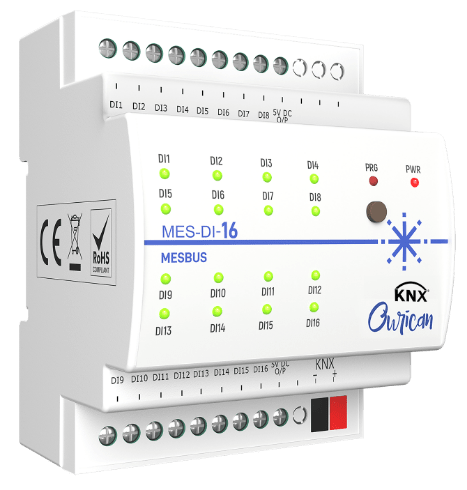

MES-DI-16

Timeless and Future-proof Technology

Limitless Potential

16 digital inputs primarily used to connect the KNX eco-system to binary input device conventional switches, enabling control of lights, dimming, fans, shutters, etc., over binary switches when the control points are on KNX, ideal for KNX based home automation within a home automation control system.

Product Enquiry
Category:

Description

  • 16 Individual inputs (non-isolated)
  • LED indicator for individual input channels
  • Suitable for switching, dimming, shutter, fan, fixed value and scene control
  • Programming button with LED indicator
  • Dimension: 71.3 (L) X 90.5 (H) x 62 (D) mm (4 DIN Units)
  • Push button function: short press & long press multiple operations per input
